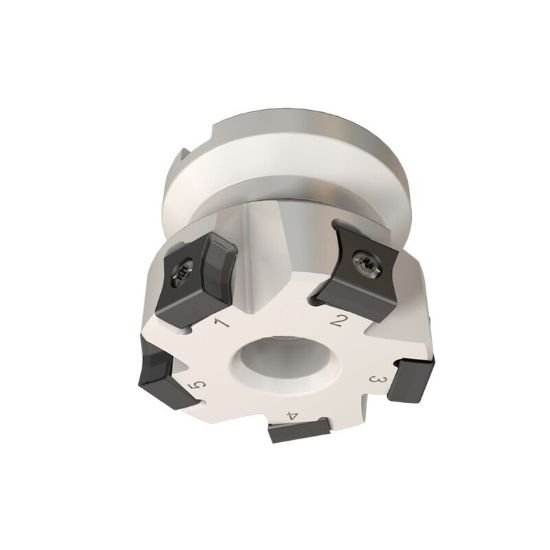

Picture of Iscar F90LN D5.00-10-1.50-R-N11 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 10 Flute

Iscar F90LN D5.00-10-1.50-R-N11 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.000 OAL 10 Flute

Part Number: ISC3103213 ISO: F90LN D5.00-10-1.50-R-N11 ANSI:F90LN D5.00-10-1.50-R-N11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012017
Vendor: Sussex Tool and Supply
$1,401.60

Description

ISCAR 3103213 Rectagonal 90.0°, Face Mill SHELL1.5000 Neutral 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Neutral
Coolant Type External
Insert Screw 7002495
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 10
Tool Dia 5.0000 127.00MM
Insert Size Ic 11
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.3940
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
