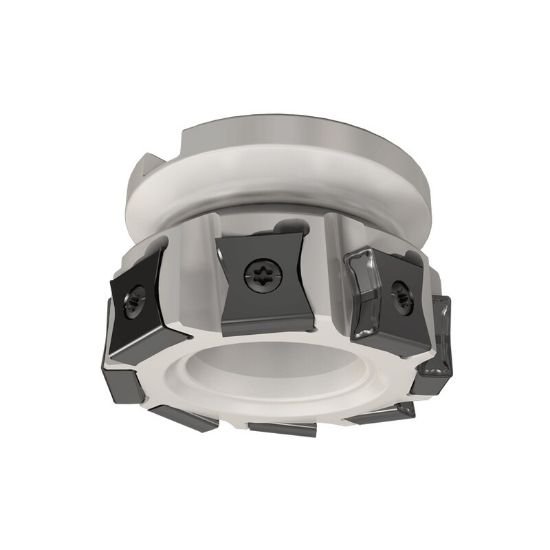

Picture of Iscar F90LN D080-10-25.40-L-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 10 Flute

Iscar F90LN D080-10-25.40-L-N15 Milling Cutter 90.0° 3.150 Diameter Face Mill 1.000 1.968 OAL 10 Flute

Part Number: ISC3194622 ISO: F90LN D080-10-25.40-L-N15 ANSI:F90LN D080-10-25.40-L-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012811
Vendor: Sussex Tool and Supply
$979.00
ISCAR 3194622 Rectagonal 90.0°, Face Mill SHELL1.0000 Negative 3.1500 80.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.9680 49.99MM
Coolant Thru Non Coolant
Flutes/Inserts 10
Tool Dia 3.1500 80.01MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Negative
Insert Size Ic 15
Cut Dia Min 3.1500 80.01MM
Coolant Type External
Depth Of Cut Max 0.5510
Cut Dia Max 3.1500 80.01MM
Insert Screw 7002791
Cutting Edge Angle 90.0°
