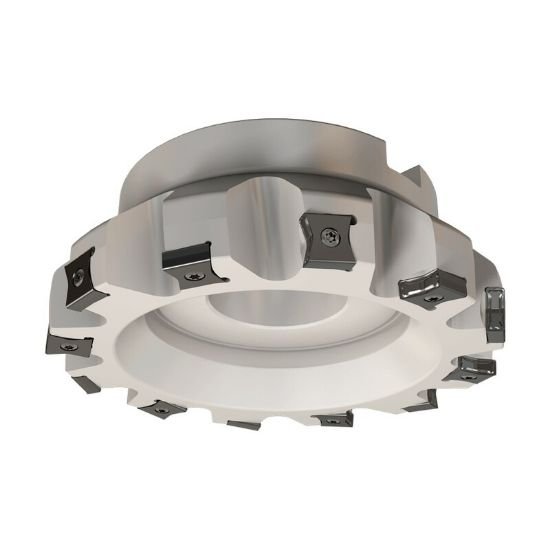

Picture of Iscar F86LNX D160-12-50.8-R-N15 Milling Cutter 86.0° 6.299 Diameter Face Mill 2.000 2.480 OAL 12 Flute

Iscar F86LNX D160-12-50.8-R-N15 Milling Cutter 86.0° 6.299 Diameter Face Mill 2.000 2.480 OAL 12 Flute

Part Number: ISC3181145 ISO: F86LNX D160-12-50.8-R-N15 ANSI:F86LNX D160-12-50.8-R-N15
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012771
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3181145 Rectagonal 86.0°, Face Mill SHELL2.0000 Negative 6.2990 159.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Negative
Coolant Type External
Insert Screw 7002353
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 12
Tool Dia 6.2990 159.99MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 86.0°
Performance & Capacity
Cut Dia Min 6.2990 159.99MM
Depth Of Cut Max 0.5120
Cut Dia Max 6.2990 159.99MM
Materials & Finish
Tool Material Steel
