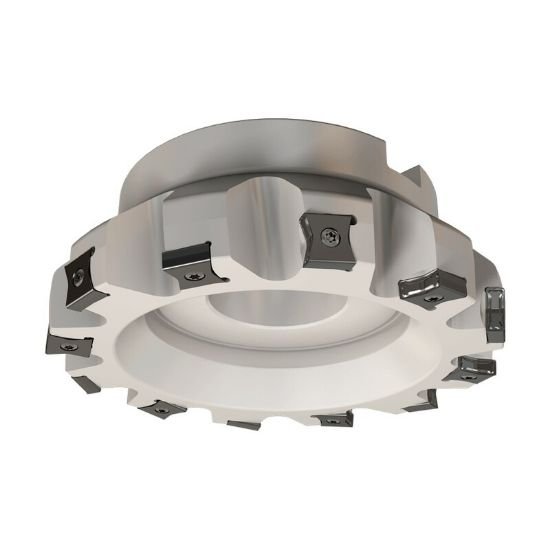

Picture of Iscar F86LNX D100-10-3175-R-N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 10 Flute

Iscar F86LNX D100-10-3175-R-N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 10 Flute

Part Number: ISC3181041 ISO: F86LNX D100-10-3175-R-N15 ANSI:F86LNX D100-10-3175-R-N15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012753
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3181041 Rectagonal 86.0°, Face Mill SHELL1.2500 Negative 3.9370 100.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.2500 31.75MM
Overall Length 1.9680 49.99MM
Coolant Thru Non Coolant
Flutes/Inserts 10
Tool Dia 3.9370 100.00MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Negative
Insert Size Ic 15
Cut Dia Min 3.9370 100.00MM
Coolant Type External
Depth Of Cut Max 0.7500
Cut Dia Max 3.9370 100.00MM
Insert Screw 7090008
Cutting Edge Angle 86.0°
