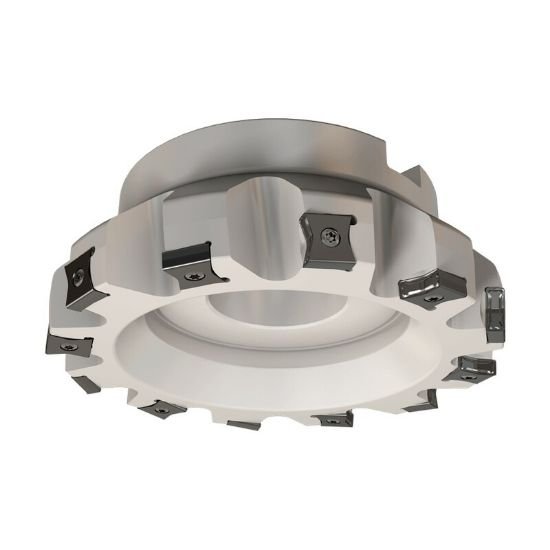

Picture of Iscar F86LNX D100-08-3175-R*N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 8 Flute

Iscar F86LNX D100-08-3175-R*N15 Milling Cutter 86.0° 3.937 Diameter Face Mill 1.250 1.968 OAL 8 Flute

Part Number: ISC3181049 ISO: F86LNX D100-08-3175-R*N15 ANSI:F86LNX D100-08-3175-R*N15
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012757
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3181049 Rectagonal 86.0°, Face Mill SHELL1.2500 Negative 3.9370 100.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style LN
Insert Shape/Cutter Pocket Shape Rectagonal
Insert Type Negative
Coolant Type External
Insert Screw 7002024
Dimensions & Sizing
Overall Length 1.9680 49.99MM
Flutes/Inserts 8
Tool Dia 3.9370 100.00MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 86.0°
Performance & Capacity
Cut Dia Min 3.9370 100.00MM
Depth Of Cut Max 0.1970
Cut Dia Max 3.9370 100.00MM
Materials & Finish
Tool Material Steel
