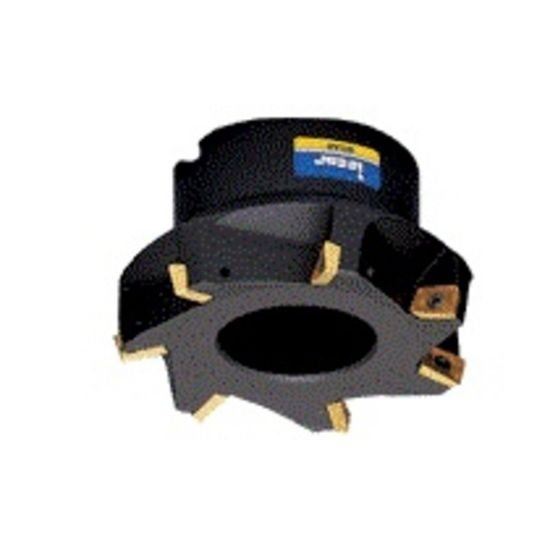

Picture of Iscar F75AP D2.50-1.00 * Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Iscar F75AP D2.50-1.00 * Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Part Number: ISC3100594 ISO: F75AP D2.50-1.00 * ANSI:F75AP D2.50-1.00 *
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011772
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3100594 Parallelogram 75.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1600
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
