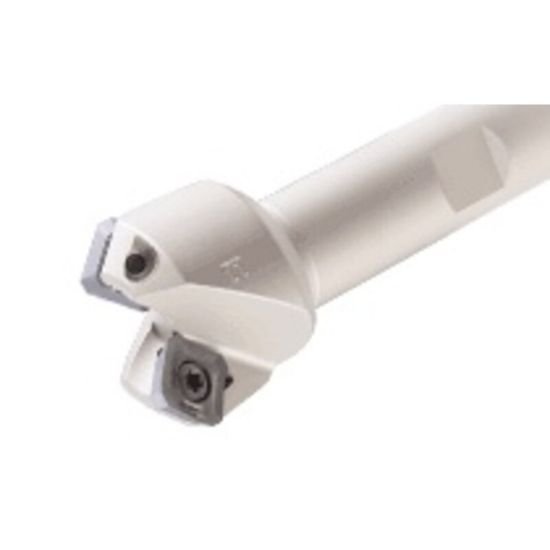

Picture of Iscar F45ST D1.50-W1.00 Milling Cutter 45.0° 1.500 Diameter Weldon 1.000 4.000 OAL 3 Flute

Iscar F45ST D1.50-W1.00 Milling Cutter 45.0° 1.500 Diameter Weldon 1.000 4.000 OAL 3 Flute

Part Number: ISC3100389 ISO: F45ST D1.50-W1.00 ANSI:F45ST D1.50-W1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011751
Vendor: Sussex Tool and Supply
$452.16

Description

ISCAR 3100389 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7002008
Seat/Nest 5520183
Seat Screw 7002005
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2600
Cut Dia Max 2.0100 51.05MM
Materials & Finish
Tool Material Steel
