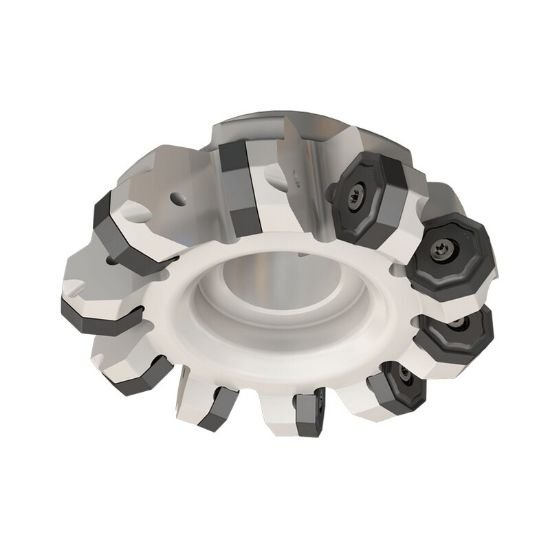

Picture of Iscar F45NM D8.0-18-2.50-R08 Milling Cutter 44.3° 8.000 Diameter Face Mill 2.500 2.500 OAL 18 Flute

Iscar F45NM D8.0-18-2.50-R08 Milling Cutter 44.3° 8.000 Diameter Face Mill 2.500 2.500 OAL 18 Flute

Part Number: ISC3105051 ISO: F45NM D8.0-18-2.50-R08 ANSI:F45NM D8.0-18-2.50-R08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012219
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3105051 Octagonal 44.3°, Face Mill SHELL2.5000 Negative 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Negative
Coolant Type External
Insert Screw 4305312
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 18
Tool Dia 8.0000 203.20MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 44.3°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.2760
Cut Dia Max 8.4900 215.65MM
Materials & Finish
Tool Material Steel
