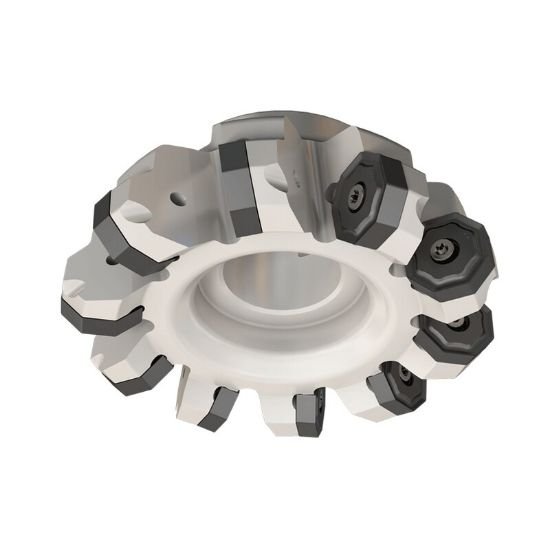

Picture of Iscar F45NM D6.0-15-2.00-R08 Milling Cutter 44.3° 6.000 Diameter Face Mill 2.000 2.000 OAL 15 Flute

Iscar F45NM D6.0-15-2.00-R08 Milling Cutter 44.3° 6.000 Diameter Face Mill 2.000 2.000 OAL 15 Flute

Part Number: ISC3105050 ISO: F45NM D6.0-15-2.00-R08 ANSI:F45NM D6.0-15-2.00-R08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012218
Vendor: Sussex Tool and Supply
$2,044.80

Description

ISCAR 3105050 Octagonal 44.3°, Face Mill SHELL2.0000 Negative 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Negative
Coolant Type External
Insert Screw 7004610
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 15
Tool Dia 6.0000 152.40MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 44.3°
Performance & Capacity
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.2200
Cut Dia Max 6.4900 164.85MM
Materials & Finish
Tool Material Steel
