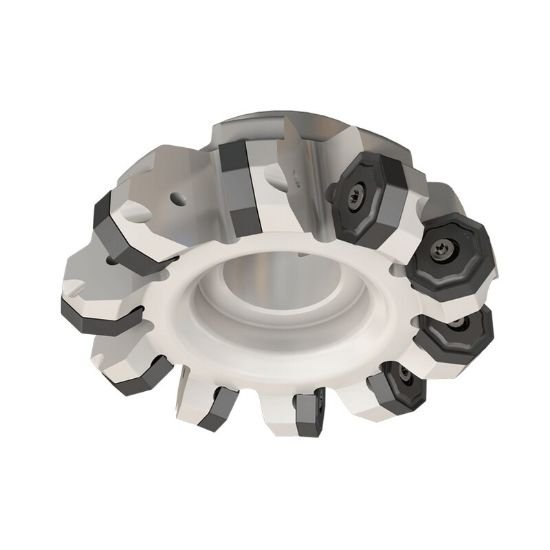

Picture of Iscar F45NM D3.0-08-1.00-R08 Milling Cutter 44.3° 3.000 Diameter R8 R8 8 Flute

Iscar F45NM D3.0-08-1.00-R08 Milling Cutter 44.3° 3.000 Diameter R8 R8 8 Flute

Part Number: ISC3181059 ISO: F45NM D3.0-08-1.00-R08 ANSI:F45NM D3.0-08-1.00-R08
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012760
Vendor: Sussex Tool and Supply
$917.76

Description

ISCAR 3181059 Octagonal 44.3°, Face Mill R8 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Negative
Coolant Type External
Insert Screw 7000000
Dimensions & Sizing
Flutes/Inserts 8
Tool Dia 3.0000 76.20MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 44.3°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.9600
Cut Dia Max 3.4900 88.65MM
Materials & Finish
Tool Material Steel
