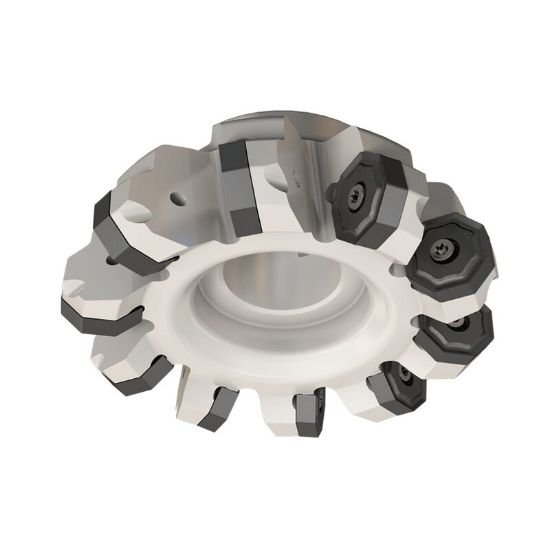

Picture of Iscar F45NM D2.5-05-1.00-R08 Milling Cutter 44.3° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Iscar F45NM D2.5-05-1.00-R08 Milling Cutter 44.3° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Part Number: ISC3104601 ISO: F45NM D2.5-05-1.00-R08 ANSI:F45NM D2.5-05-1.00-R08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012164
Vendor: Sussex Tool and Supply
$697.92

Description

ISCAR 3104601 Octagonal 44.3°, Face Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Negative
Coolant Type External
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 44.3°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1140
Cut Dia Max 2.9900 75.95MM
Materials & Finish
Tool Material Steel
