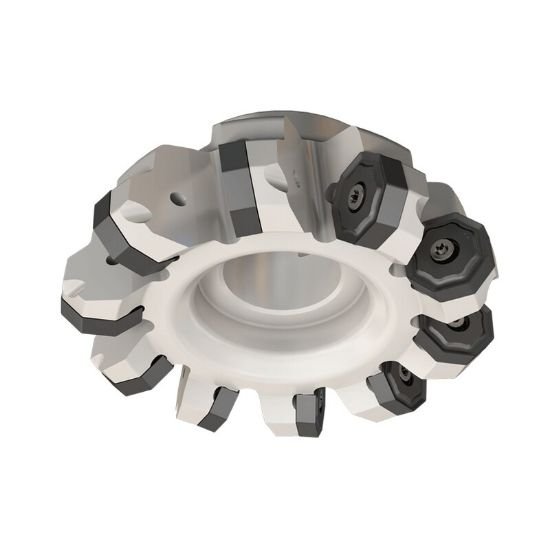

Picture of Iscar F45NM D10.0-14-2.50-R08 Milling Cutter 44.3° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

Iscar F45NM D10.0-14-2.50-R08 Milling Cutter 44.3° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

Part Number: ISC3104839 ISO: F45NM D10.0-14-2.50-R08 ANSI:F45NM D10.0-14-2.50-R08
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$2,726.40
SKU: 1012194

Description

ISCAR 3104839 Octagonal 44.3°, Face Mill SHELL2.5000 Negative 10.0000 254.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ON
Insert Shape/Cutter Pocket Shape Octagonal
Insert Type Negative
Coolant Type External
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 14
Tool Dia 10.0000 254.00MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 44.3°
Performance & Capacity
Cut Dia Min 10.0000 254.00MM
Depth Of Cut Max 0.2200
Cut Dia Max 10.4900 266.45MM
Materials & Finish
Tool Material Steel
