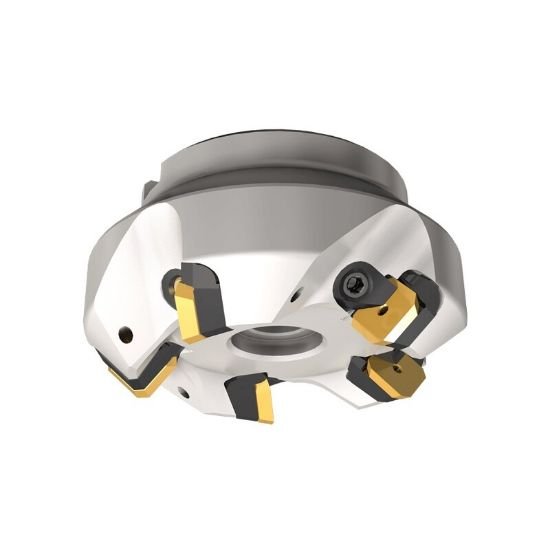

Picture of Iscar F45E D 3.0 -1.00 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Iscar F45E D 3.0 -1.00 Milling Cutter 45.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 6 Flute

Part Number: ISC3100031 ISO: F45E D 3.0 -1.00 ANSI:F45E D 3.0 -1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011732
Vendor: Sussex Tool and Supply
$845.76

Description

ISCAR 3100031 Square 45.0°, Face Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Clamp Screw 7000238
Clamp/Wedge 7002064
Seat/Nest 4300095
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 6
Tool Dia 3.0000 76.20MM
Insert Size Ic 42
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 3.0000 76.20MM
Depth Of Cut Max 0.2560
Cut Dia Max 3.0000 76.20MM
Materials & Finish
Tool Material Steel
