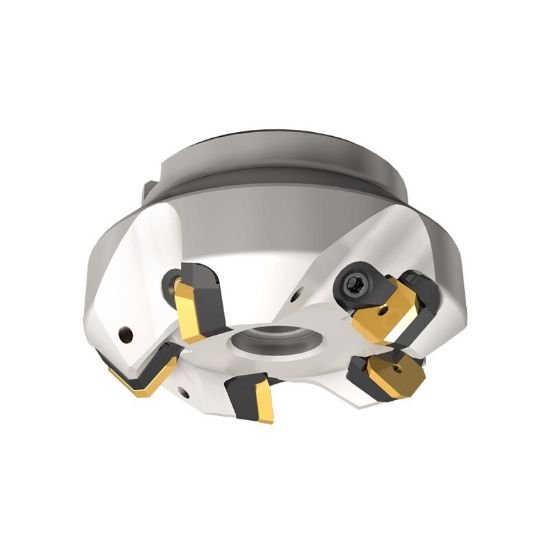

Picture of Iscar F45E D 2.5 -1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Iscar F45E D 2.5 -1.00 Milling Cutter 45.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Part Number: ISC3100027 ISO: F45E D 2.5 -1.00 ANSI:F45E D 2.5 -1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011731
Vendor: Sussex Tool and Supply
$707.52

Description

ISCAR 3100027 Square 45.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Clamp Screw 7000238
Clamp/Wedge 7002064
Seat/Nest 4300095
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 42
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.2560
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
