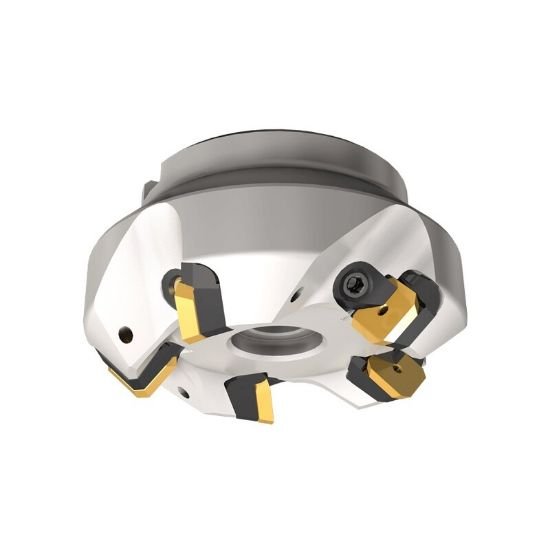

Picture of Iscar F45E D 2.0- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.700 OAL 4 Flute

Iscar F45E D 2.0- .75 Milling Cutter 45.0° 2.000 Diameter Face Mill 0.750 1.700 OAL 4 Flute

Part Number: ISC3100026 ISO: F45E D 2.0- .75 ANSI:F45E D 2.0- .75
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011730
Vendor: Sussex Tool and Supply
$639.36

Description

ISCAR 3100026 Square 45.0°, Face Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Clamp Screw 7000238
Clamp/Wedge 7002064
Seat/Nest 4300095
Dimensions & Sizing
Overall Length 1.7000 43.18MM
Flutes/Inserts 4
Tool Dia 2.0000 50.80MM
Insert Size Ic 42
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.2560
Cut Dia Max 2.0000 50.80MM
Materials & Finish
Tool Material Steel
