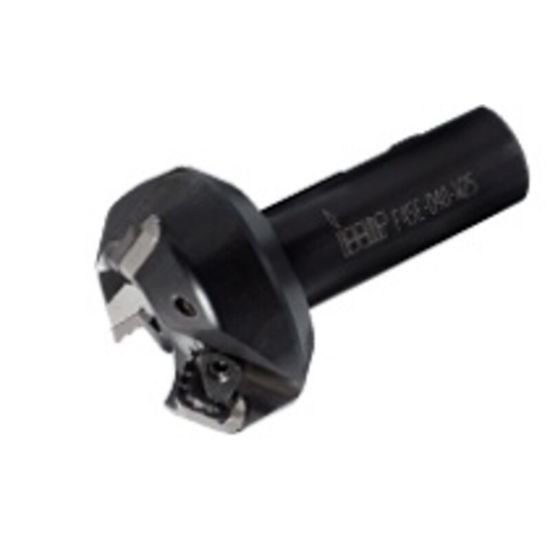

Picture of Iscar F45E D 1.50-W1.00 Milling Cutter 45.0° 1.500 Diameter Weldon 1.000 3.750 OAL 3 Flute

Iscar F45E D 1.50-W1.00 Milling Cutter 45.0° 1.500 Diameter Weldon 1.000 3.750 OAL 3 Flute

Part Number: ISC3100025 ISO: F45E D 1.50-W1.00 ANSI:F45E D 1.50-W1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011729
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3100025 Square 45.0°, Face Mill End Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Clamp/Wedge 4300063
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 42
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2560
Cut Dia Max 2.2000 55.88MM
Materials & Finish
Tool Material Steel
