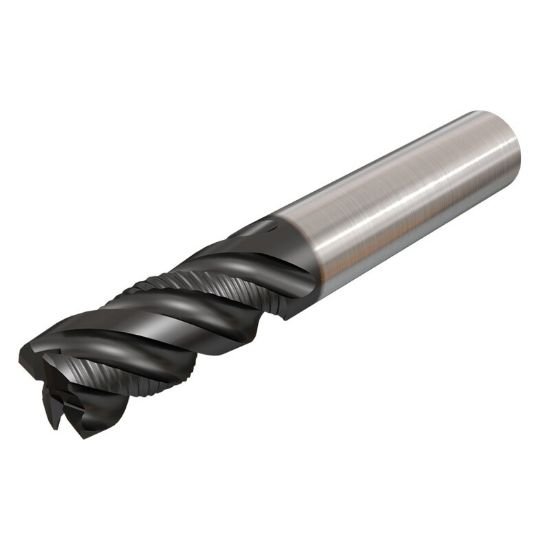

Picture of Iscar EFSI-B44 750-1.0W750R09 IC300 Dia 3/4 SH 0.7500 LOC 1.00 OAL4.00 End Mill Carbide TiCN Single End 45.0° Chamfer FINI-SHRed

Iscar EFSI-B44 750-1.0W750R09 IC300 Dia 3/4 SH 0.7500 LOC 1.00 OAL4.00 End Mill Carbide TiCN Single End 45.0° Chamfer FINI-SHRed

Part Number: ISC5623225 0.750 x 0.750 x 1.000 x 4.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289700
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR EFSI-B44 750-1.0W750R09 IC300 End Mill Carbide TiCN 45.0° Chamfer Chamfer Flutes 4 Single End FINI-SHRED Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.0000 25.40MM
Neck Length 1.0000 25.40MM
Geometry & Angles
Helix Angle 45
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
