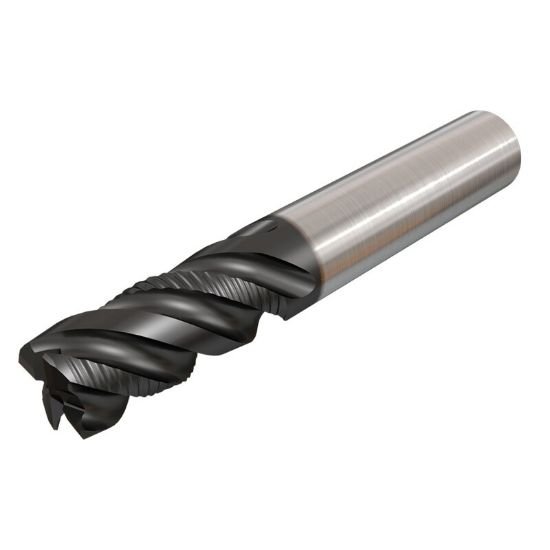

Picture of Iscar EFSI-B44 1.0-2.00W1.0 IC300 Dia 1 SH 1.00 LOC 2.00 OAL5.00 End Mill Carbide TiCN Single End 45.0° Chamfer FINI-SHRed

Iscar EFSI-B44 1.0-2.00W1.0 IC300 Dia 1 SH 1.00 LOC 2.00 OAL5.00 End Mill Carbide TiCN Single End 45.0° Chamfer FINI-SHRed

Part Number: ISC5622686 1.000 x 1.000 x 2.000 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1181668
Vendor: Sussex Tool and Supply
$0.00
ISCAR EFSI-B44 1.0-2.00W1.0 IC300 End Mill Carbide TiCN 45.0° Chamfer Chamfer Flutes 4 Single End FINI-SHRED Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TICN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Rougher/Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Non Center Cutting
