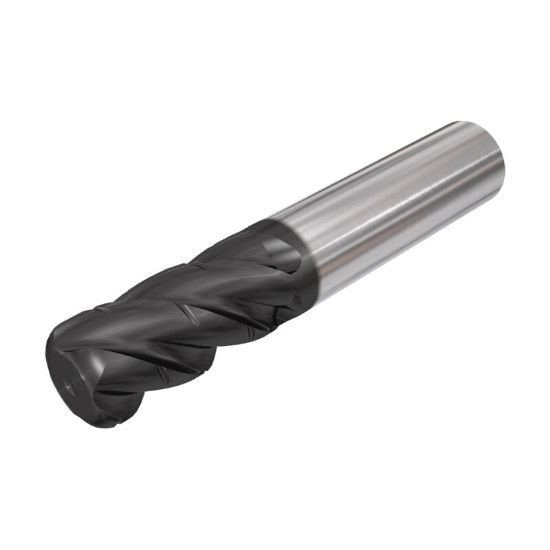

Picture of Iscar EFPI-E5CF 750-1.87C750R15 IC903 Dia 3/4 SH 0.7500 LOC 0.0390 OAL4.00 End Mill Carbide TiAlN Single End Corner Radius0.1500 3.81mm ChatterFree

Iscar EFPI-E5CF 750-1.87C750R15 IC903 Dia 3/4 SH 0.7500 LOC 0.0390 OAL4.00 End Mill Carbide TiAlN Single End Corner Radius0.1500 3.81mm ChatterFree

Part Number: ISC5680950 0.750 x 0.750 x 0.039 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289749
Vendor: Sussex Tool and Supply
$523.00
ISCAR EFPI-E5CF 750-1.87C750R15 IC903 End Mill Carbide TiAlN Corner Radius 0.1500 3.81MM Flutes 5 Single End CHATTERFREE Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.0390 0.99MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Rougher
Single/Double End Single End
Corner Radius 0.1500 3.81MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Non Center Cutting
