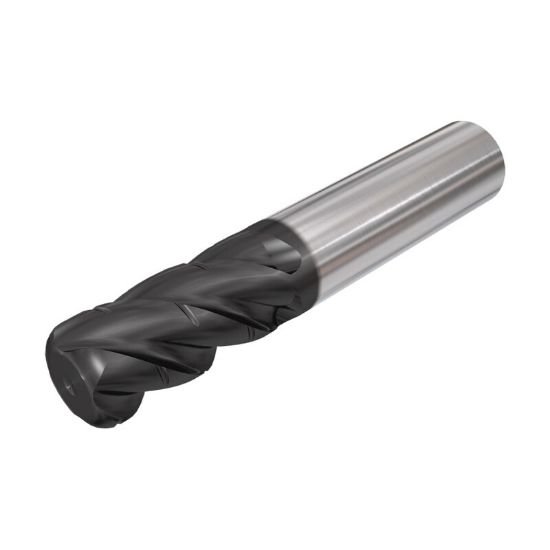

Picture of Iscar EFPI-E4CF 625-1.2C625R13 IC903 Dia 5/8 SH 0.6250 LOC 0.0310 OAL3.50 End Mill Carbide TiAlN Single End Corner Radius0.1300 3.30mm ChatterFree

Iscar EFPI-E4CF 625-1.2C625R13 IC903 Dia 5/8 SH 0.6250 LOC 0.0310 OAL3.50 End Mill Carbide TiAlN Single End Corner Radius0.1300 3.30mm ChatterFree

Part Number: ISC5680941 0.625 x 0.625 x 0.031 x 3.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1189422
Vendor: Sussex Tool and Supply
$292.86

Description

ISCAR EFPI-E4CF 625-1.2C625R13 IC903 End Mill Carbide TiAlN Corner Radius 0.1300 3.30MM Flutes 4 Single End CHATTERFREE Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.0310 0.79MM
Geometry & Angles
Corner Radius 0.1300 3.30MM
Helix Angle 38
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
