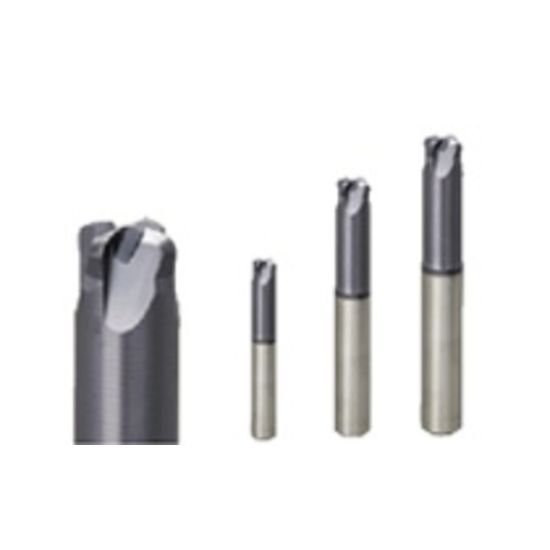

Picture of Iscar EFFI-S4-750 230/1.80C750M IC903 Dia 3/4 SH 0.7500 LOC 0.0390 OAL4.00 End Mill Carbide TiAlN Single End High Feed0.1180 3.00mm Solid-Feed-Mill

Iscar EFFI-S4-750 230/1.80C750M IC903 Dia 3/4 SH 0.7500 LOC 0.0390 OAL4.00 End Mill Carbide TiAlN Single End High Feed0.1180 3.00mm Solid-Feed-Mill

Part Number: ISC5622480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289574
Vendor: Sussex Tool and Supply
$0.00
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Cutter Type Solid End Mill
Length Type Standard / With Neck
Performance Rating High Performance
Center Cutting Non Center Cutting
Overall Length 4.0000 101.60MM
Machine Side (Toolpost) CYLINDRICAL0.7500
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 0.0390 0.99MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 4
Shipping State TEXAS
Family Group Feed-Mill
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.7500 19.05MM - 3/4
Coating TiAlN
Tool Diameter 0.7500 19.05MM - 3/4
Coolant Thru Non Coolant
Corner Radius 0.1180 3.00MM
Neck Length 1.8000 45.72MM
Made In USA No
