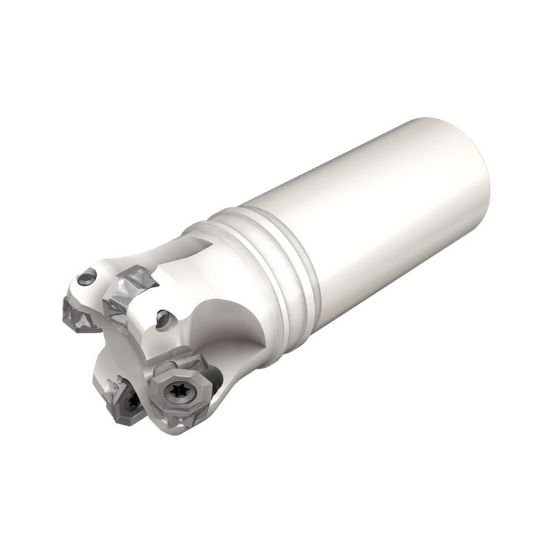

Picture of Iscar ECM D1.50-W1.25-11 Milling Cutter 90.0°, 45.0°, 44.0° 1.500 Diameter Weldon 1.250 4.000 OAL 4 Flute

Iscar ECM D1.50-W1.25-11 Milling Cutter 90.0°, 45.0°, 44.0° 1.500 Diameter Weldon 1.250 4.000 OAL 4 Flute

Part Number: ISC3101246 ISO: ECM D1.50-W1.25-11 ANSI:ECM D1.50-W1.25-11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011796
Vendor: Sussex Tool and Supply
$564.48

Description

ISCAR 3101246 Multi 90.0°, 45.0°, 44.0 ° , Button End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Button
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN, ON, RX, RN
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7000219
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Geometry & Angles
Cutting Edge Angle 44.0°, 45.0°, 90.0°
Performance & Capacity
Depth Of Cut Max 0.7900
Max Ramp Angle 5.90°
Materials & Finish
Tool Material Steel
