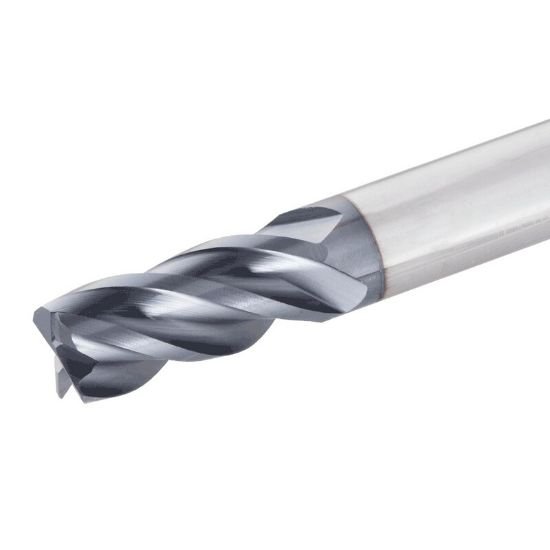

Picture of Iscar ECKI-H4R 625-1.25SL04CF IC900 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer0.0400 1.02mm SolidMill

Iscar ECKI-H4R 625-1.25SL04CF IC900 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer0.0400 1.02mm SolidMill

Part Number: ISC3338809 0.625 x 0.625 x 1.250 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189408
Vendor: Sussex Tool and Supply
$0.00
ISCAR ECKI-H4R 625-1.25SL04CF IC900 Standard Helix End Mill Carbide AlTiN 45.0° Chamfer 0.0400 1.02MM Standard Flute Flutes 4 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Safe Lock
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Corner Radius 0.0400 1.02MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
