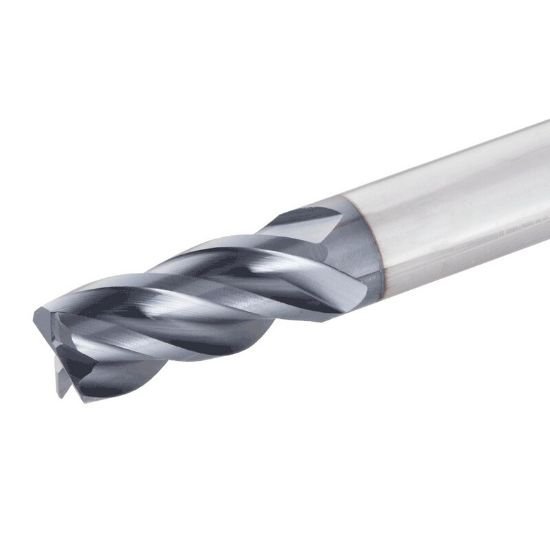

Picture of Iscar ECKI-H4R 500-1.0W500C IC300 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Coolant Standard Helix Carbide TiCN Single End 45.0° Chamfer0.0230 0.58mm SolidMill

Iscar ECKI-H4R 500-1.0W500C IC300 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Coolant Standard Helix Carbide TiCN Single End 45.0° Chamfer0.0230 0.58mm SolidMill

Part Number: ISC3322928 0.500 x 0.500 x 1.000 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1183274
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR ECKI-H4R 500-1.0W500C IC300 Standard Helix End Mill Carbide TiCN 45.0° Chamfer 0.0230 0.58MM Standard Flute Coolant Flutes 4 Single End SOLIDMILL Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher Coolant
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.0230 0.58MM
Helix Angle 36
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
