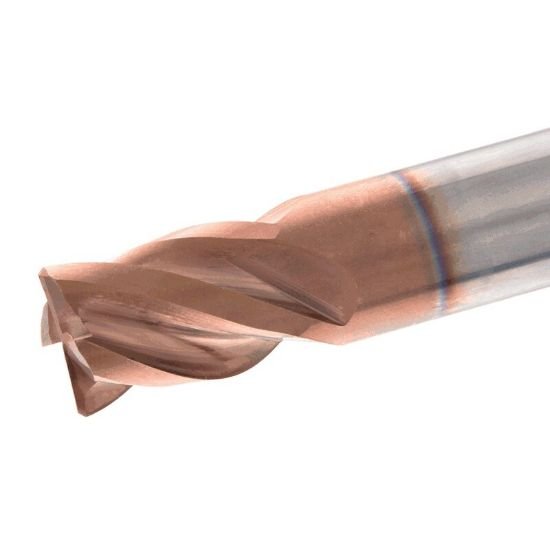

Picture of Iscar ECI-H4S 312-312C312CFE2.5 IC608 Dia 5/16 SH 0.3125 LOC 0.3120 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Iscar ECI-H4S 312-312C312CFE2.5 IC608 Dia 5/16 SH 0.3125 LOC 0.3120 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Part Number: ISC5669386 0.313 x 0.313 x 0.312 x 2.500
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289739
Vendor: Sussex Tool and Supply
$50.65

Description

ISCAR ECI-H4S 312-312C312CFE2.5 IC608 Standard Helix End Mill Carbide AlTiCrSiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End SOLIDMILL Carbide Great for hard to cut steels and high harndness matirials
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.3120 7.92MM
Neck Length 0.3100 7.87MM
Geometry & Angles
Helix Angle 36
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Stainless Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating AlTiCrSiN
