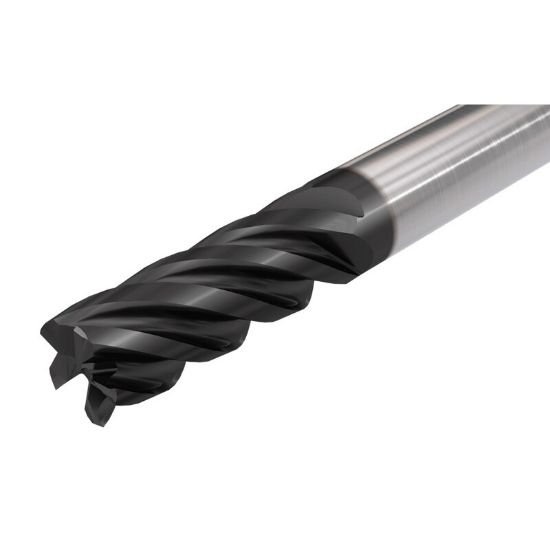

Picture of Iscar ECI-E5R375-937C37CF03 IC900 Dia 3/8 SH 0.3750 LOC 0.9370 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm ChatterFree

Iscar ECI-E5R375-937C37CF03 IC900 Dia 3/8 SH 0.3750 LOC 0.9370 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm ChatterFree

Part Number: ISC5623208 0.375 x 0.375 x 0.937 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$140.51
SKU: 1289694

Description

ISCAR ECI-E5R375-937C37CF03 IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 5 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.9370 23.80MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Helix Angle 38
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
