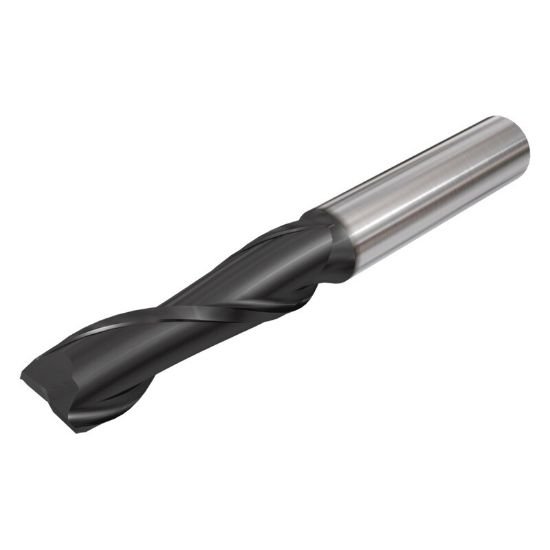

Picture of Iscar ECI-A-2 375-1.0-C375 IC300 Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp SolidMill

Iscar ECI-A-2 375-1.0-C375 IC300 Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp SolidMill

Part Number: ISC5620264 0.375 x 0.375 x 1.000 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289396
Vendor: Sussex Tool and Supply
$0.00
ISCAR ECI-A-2 375-1.0-C375 IC300 Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 2 Single End SOLIDMILL Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TICN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
