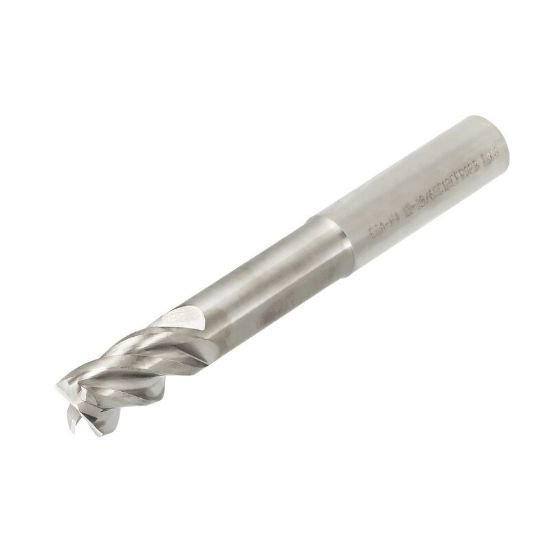

Picture of Iscar ECAI-H4R 312-470/1.6C01CF IC08 Dia 5/16 SH 0.3125 LOC 0.4700 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm SolidMill

Iscar ECAI-H4R 312-470/1.6C01CF IC08 Dia 5/16 SH 0.3125 LOC 0.4700 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm SolidMill

Part Number: ISC5667854 0.313 x 0.313 x 0.470 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289719
Vendor: Sussex Tool and Supply
$85.85
ISCAR ECAI-H4R 312-470/1.6C01CF IC08 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0100 0.25MM Standard Flute Flutes 4 Single End SOLIDMILL Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Tool Dia 0.3125 7.94MM - 5/16
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.4700 11.94MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Helix Angle 40
Center Cutting Center Cutting
Neck Length 1.6000 40.64MM
