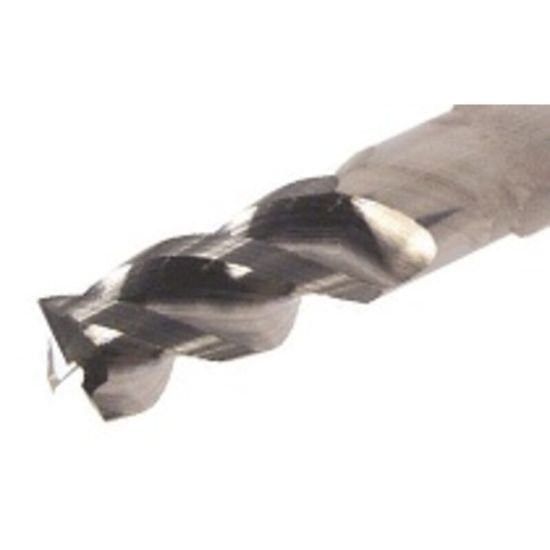

Picture of Iscar ECAI-H3R 625-1.0/3.1C02CF IC08 Dia 5/8 SH 0.6250 LOC 1.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm ChatterFree

Iscar ECAI-H3R 625-1.0/3.1C02CF IC08 Dia 5/8 SH 0.6250 LOC 1.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0200 0.51mm ChatterFree

Part Number: ISC5622913

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189448
Vendor: Sussex Tool and Supply
$383.80
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.6250
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 5.0000 127.00MM
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Family Group Chatter Free
Coolant Thru Non Coolant
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.6250 15.88MM - 5/8
Flutes Or Inserts 3
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Corner Radius
Cutter Style Carbide Bull Nose Finisher
Single Or Double End Single End
Corner Radius 0.0200 0.51MM
Inch Or Metric Inch
Helix Angle 40°
Center Cutting Center Cutting
Neck Length 3.1250 79.38MM
