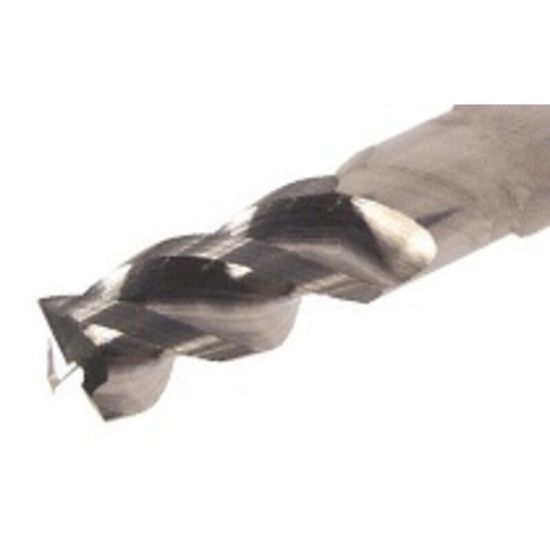

ISCAR ECAI-H3R 1.0-1.5/5.0C06CF IC08 DIA 1 SH 1.00 LOC 1.50 OAL7.20 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0600 1.52MM CHATTERFREE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622941
Delivery date: 3-5 days
$920.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Slot Milling, Profile Milling
Additional Key Information 4 Standard Helix
Performance Rating High Performance
Additional Key Information 2 Corner Radius
Package Size 1
Sold by Pieces 1
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 1.500 x 7.200
Corner Radius 0.0600 1.52MM
Cutter Dia 1.0000 25.40MM
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Neck Length 5.0000 127.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Machine Side CYLINDRICAL1.0000
Length Of Cut 1.5000 38.10MM
Helix Angle 40°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Overall Len 7.2000 182.88MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
