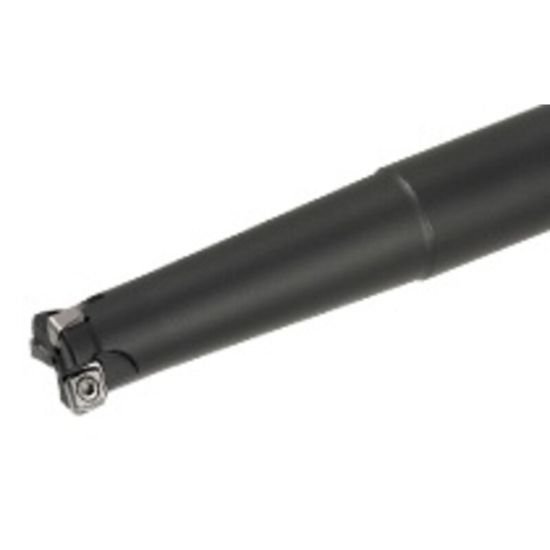

Picture of Iscar E93CN D.750-3L60C.750-07 Milling Cutter 0.750 Diameter Round 0.750 6.000 OAL 3 Flute

Iscar E93CN D.750-3L60C.750-07 Milling Cutter 0.750 Diameter Round 0.750 6.000 OAL 3 Flute

Part Number: ISC3103478 ISO: E93CN D.750-3L60C.750-07 ANSI:E93CN D.750-3L60C.750-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012052
Vendor: Sussex Tool and Supply
$362.88

Description

ISCAR 3103478 Teardrop Back Draft End Mill Cylindrical 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Back Draft
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style CN
Insert Shape/Cutter Pocket Shape Teardrop
Insert Type Negative
Coolant Type External
Insert Screw 7002377
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.0800
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
