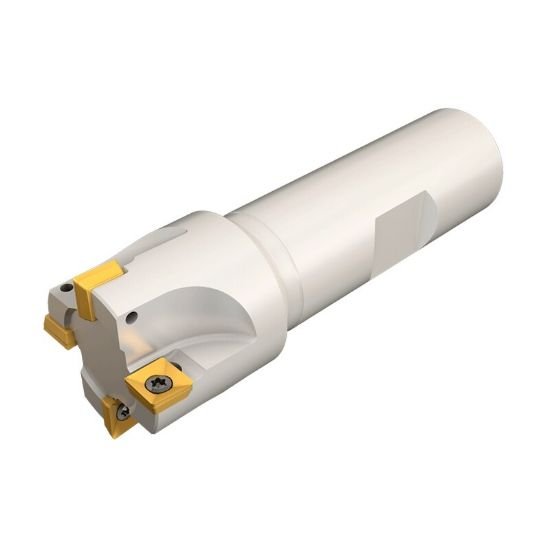

Picture of Iscar E90X D.75-W .75-06 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.000 OAL 3 Flute

Iscar E90X D.75-W .75-06 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.000 OAL 3 Flute

Part Number: ISC3110361 ISO: E90X D.75-W .75-06 ANSI:E90X D.75-W .75-06
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012669
Vendor: Sussex Tool and Supply
$392.64

Description

ISCAR 3110361 Square 90.0°, End Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2200
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
