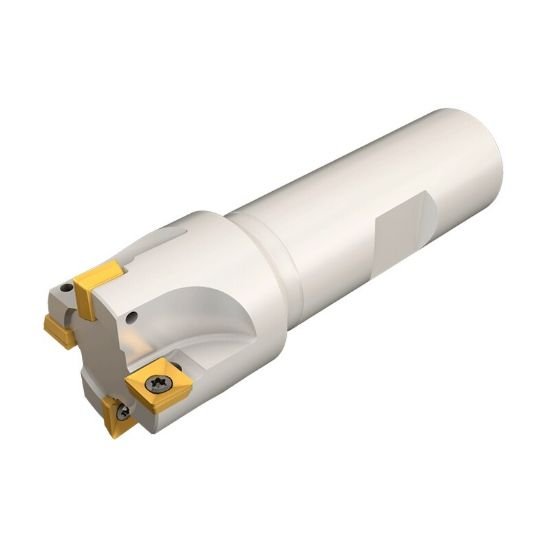

Picture of Iscar E90X D.62-W .62-06 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 2.750 OAL 2 Flute

Iscar E90X D.62-W .62-06 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 2.750 OAL 2 Flute

Part Number: ISC3110360 ISO: E90X D.62-W .62-06 ANSI:E90X D.62-W .62-06
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012668
Vendor: Sussex Tool and Supply
$346.56

Description

ISCAR 3110360 Square 90.0°, End Mill End Mill Weldon 0.6250 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000836
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2200
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 3.50°
Materials & Finish
Tool Material Steel
