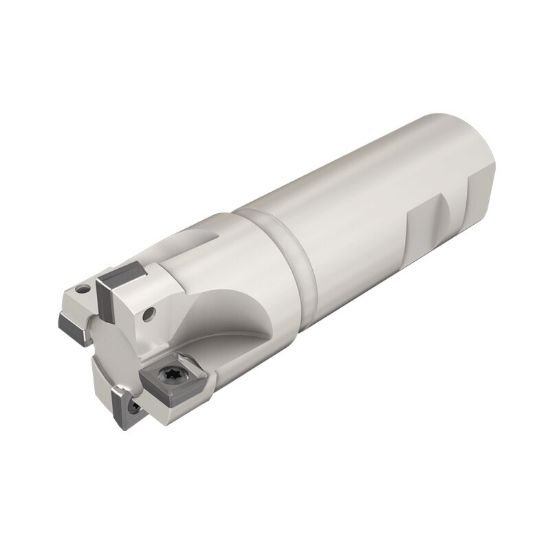

Picture of Iscar E90SP D1.00-W1.00-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

Iscar E90SP D1.00-W1.00-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

Part Number: ISC3110443 ISO: E90SP D1.00-W1.00-10 ANSI:E90SP D1.00-W1.00-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012681
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3110443 Square 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000216
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3800
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
