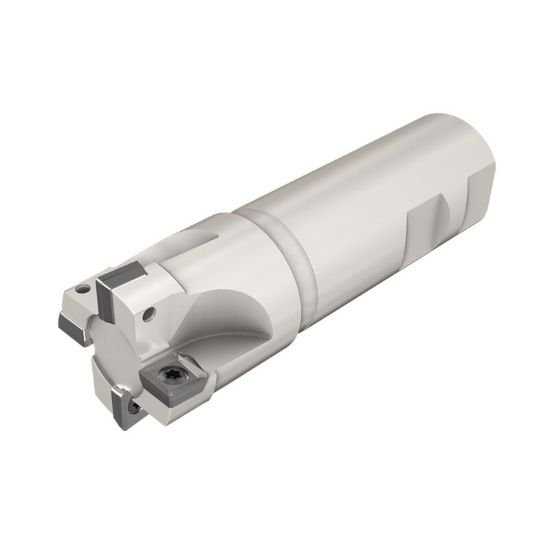

Picture of Iscar E90SP D1.00-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.000 OAL 2 Flute

Iscar E90SP D1.00-W.75-10 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.000 OAL 2 Flute

Part Number: ISC3110440 ISO: E90SP D1.00-W.75-10 ANSI:E90SP D1.00-W.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012678
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3110440 Square 90.0°, End Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 10
Cut Dia Min 1.0000 25.40MM
Coolant Type External
Depth Of Cut Max 0.3800
Cut Dia Max 1.0000 25.40MM
Insert Screw 7000402
Cutting Edge Angle 90.0°
Max Ramp Angle 3.00°
