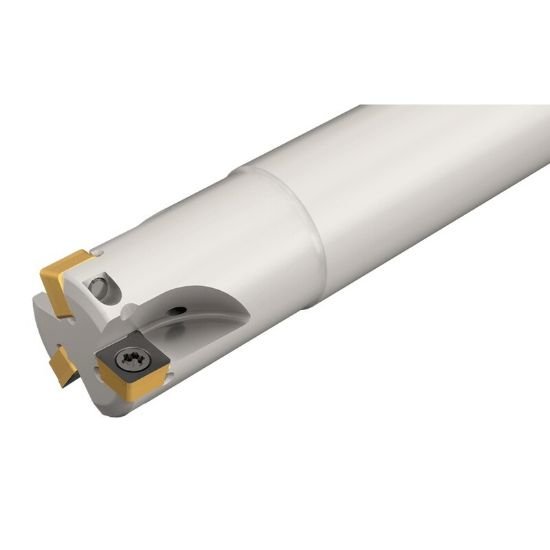

Picture of Iscar E90SO D.75-06-W.75-04-C Milling Cutter 0.750 Diameter Weldon 0.750 3.500 OAL 6 Flute

Iscar E90SO D.75-06-W.75-04-C Milling Cutter 0.750 Diameter Weldon 0.750 3.500 OAL 6 Flute

Part Number: ISC3350635 ISO: E90SO D.75-06-W.75-04-C ANSI:E90SO D.75-06-W.75-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012945
Vendor: Sussex Tool and Supply
$502.08

Description

ISCAR 3350635 Square Feed Mill End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1380
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
