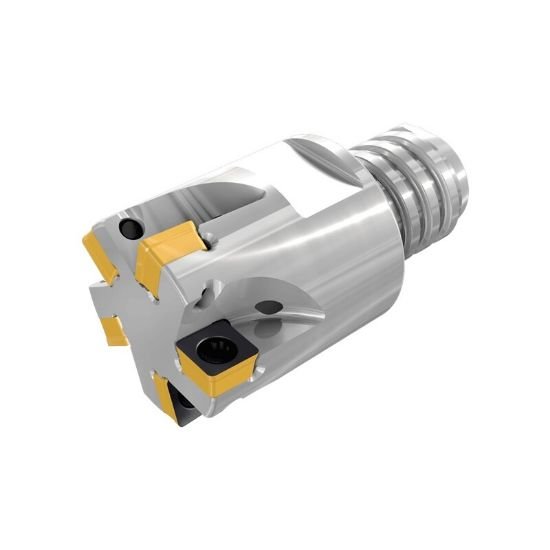

Picture of Iscar E90SO D.75-06-mmT12-04-C Milling Cutter 0.750 Diameter Screw On T12 1.500 OAL 6 Flute

Iscar E90SO D.75-06-mmT12-04-C Milling Cutter 0.750 Diameter Screw On T12 1.500 OAL 6 Flute

Part Number: ISC3350640 ISO: E90SO D.75-06-MMT12-04-C ANSI:E90SO D.75-06-MMT12-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012949
Vendor: Sussex Tool and Supply
$528.00

Description

ISCAR 3350640 Square Feed Mill Thread On T12 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7007033
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Flutes/Inserts 6
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3740
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
