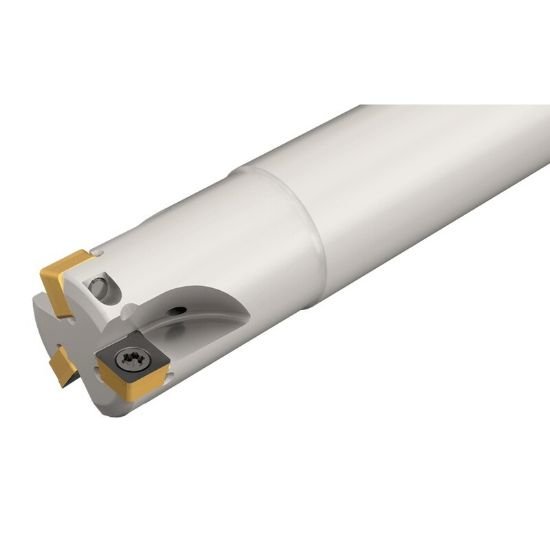

Picture of Iscar E90SO D.62-05-C.62-04-C Milling Cutter 0.625 Diameter Round 0.625 3.500 OAL 5 Flute

Iscar E90SO D.62-05-C.62-04-C Milling Cutter 0.625 Diameter Round 0.625 3.500 OAL 5 Flute

Part Number: ISC3340333 ISO: E90SO D.62-05-C.62-04-C ANSI:E90SO D.62-05-C.62-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012910
Vendor: Sussex Tool and Supply
$416.64

Description

ISCAR 3340333 Square Feed Mill End Mill Cylindrical 0.6250 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 4308444
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.8700
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 2.00°
Materials & Finish
Tool Material Steel
