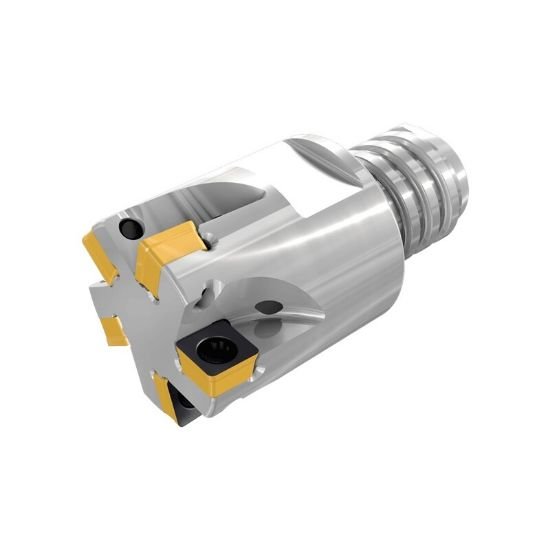

Picture of Iscar E90SO D.50-03-mmT08-04-C Milling Cutter 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

Iscar E90SO D.50-03-mmT08-04-C Milling Cutter 0.500 Diameter Screw On T08 0.940 OAL 3 Flute

Part Number: ISC3350638 ISO: E90SO D.50-03-MMT08-04-C ANSI:E90SO D.50-03-MMT08-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012947
Vendor: Sussex Tool and Supply
$368.64

Description

ISCAR 3350638 Square Feed Mill Thread On T08 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 0.9400 23.88MM
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1380
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
