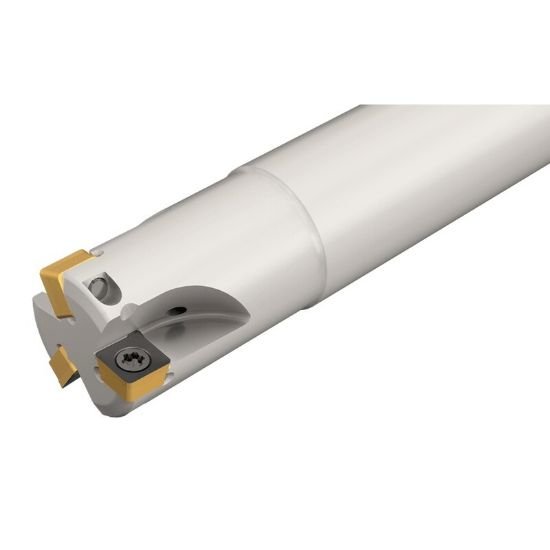

Picture of Iscar E90SO D.50-03-C.50-04-C Milling Cutter 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

Iscar E90SO D.50-03-C.50-04-C Milling Cutter 0.500 Diameter Round 0.500 3.500 OAL 3 Flute

Part Number: ISC3340331 ISO: E90SO D.50-03-C.50-04-C ANSI:E90SO D.50-03-C.50-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012909
Vendor: Sussex Tool and Supply
$351.36

Description

ISCAR 3340331 Square Feed Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1380
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
