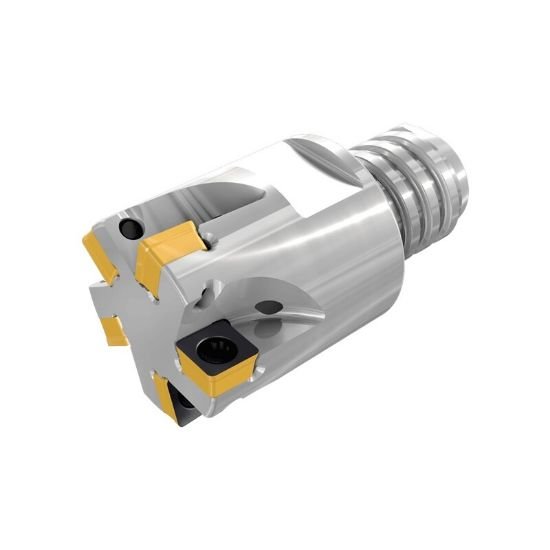

Picture of Iscar E90SO D.38-02-mmT06-04-C Milling Cutter 0.375 Diameter Screw On T06 0.770 OAL 2 Flute

Iscar E90SO D.38-02-mmT06-04-C Milling Cutter 0.375 Diameter Screw On T06 0.770 OAL 2 Flute

Part Number: ISC3350637 ISO: E90SO D.38-02-MMT06-04-C ANSI:E90SO D.38-02-MMT06-04-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012946
Vendor: Sussex Tool and Supply
$345.60

Description

ISCAR 3350637 Square Feed Mill Thread On T06 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 0.7700 19.56MM
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Depth Of Cut Max 0.1380
Cut Dia Max 0.3750 9.53MM - 3/8
Max Ramp Angle 6.00°
Materials & Finish
Tool Material Steel
