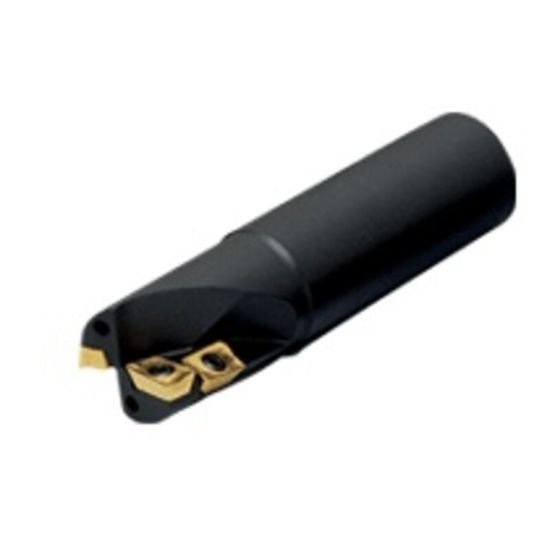

Picture of Iscar E90AC D2.00-1.5W1.5 Milling Cutter 90.0°, Drill Mill 2.000 Diameter Weldon 1.500 5.510 OAL 8 Flute

Iscar E90AC D2.00-1.5W1.5 Milling Cutter 90.0°, Drill Mill 2.000 Diameter Weldon 1.500 5.510 OAL 8 Flute

Part Number: ISC3100734 ISO: E90AC D2.00-1.5W1.5 ANSI:E90AC D2.00-1.5W1.5
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011785
Vendor: Sussex Tool and Supply
$907.20

Description

ISCAR 3100734 Parallelogram 90.0°, Drill Mill End Mill Weldon 1.5000 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 5.5100 139.95MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 8
Tool Dia 2.0000 50.80MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 1.5000
Materials & Finish
Tool Material Steel
