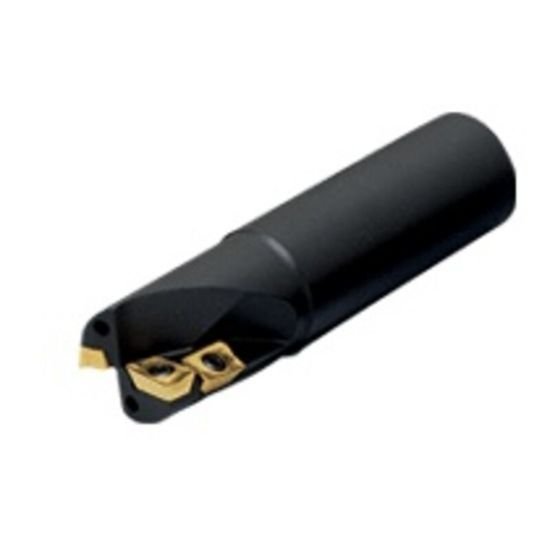

Picture of Iscar E90AC D1.50-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

Iscar E90AC D1.50-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

Part Number: ISC3100668 ISO: E90AC D1.50-1.0W1.25 ANSI:E90AC D1.50-1.0W1.25
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$674.88
SKU: 1011779

Description

ISCAR 3100668 Parallelogram 90.0°, Drill Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000402
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 1.0300
Materials & Finish
Tool Material Steel
