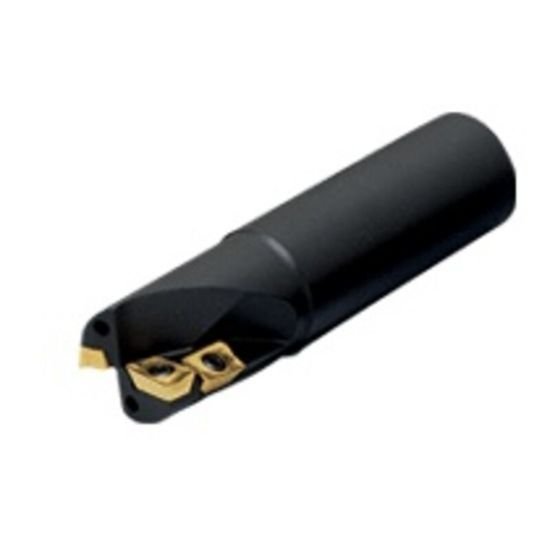

Picture of Iscar E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

Iscar E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

Part Number: ISC3100401 ISO: E90AC D1.00-.40W1.0 ANSI:E90AC D1.00-.40W1.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011754
Vendor: Sussex Tool and Supply
$393.00
ISCAR 3100401 Parallelogram 90.0°, Drill Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0200 102.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 1.0000 25.40MM
Coolant Type Through Hole
Depth Of Cut Max 0.7500
Insert Screw 7002441
Cutting Edge Angle 90.0°
