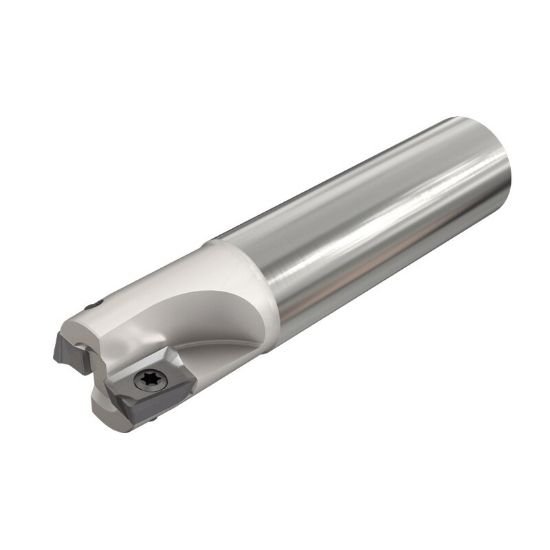

Picture of Iscar E90A D2.00-W1.00 Milling Cutter 90.0° 2.000 Diameter Weldon 1.000 4.000 OAL 7 Flute

Iscar E90A D2.00-W1.00 Milling Cutter 90.0° 2.000 Diameter Weldon 1.000 4.000 OAL 7 Flute

Part Number: ISC3110386 ISO: E90A D2.00-W1.00 ANSI:E90A D2.00-W1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012670
Vendor: Sussex Tool and Supply
$720.96

Description

ISCAR 3110386 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000836
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 7
Tool Dia 2.0000 50.80MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.3900
Cut Dia Max 2.0000 50.80MM
Max Ramp Angle 1.40°
Materials & Finish
Tool Material Steel
