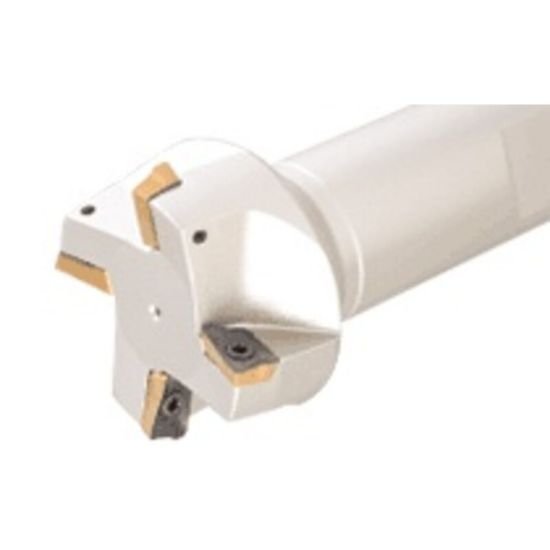

Picture of Iscar E75A D1.50-W1.00 Milling Cutter 75.0° 1.500 Diameter Weldon 1.000 4.000 OAL 4 Flute

Iscar E75A D1.50-W1.00 Milling Cutter 75.0° 1.500 Diameter Weldon 1.000 4.000 OAL 4 Flute

Part Number: ISC3110345 ISO: E75A D1.50-W1.00 ANSI:E75A D1.50-W1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012665
Vendor: Sussex Tool and Supply
$608.64

Description

ISCAR 3110345 Parallelogram 75.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000836
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.2200
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
