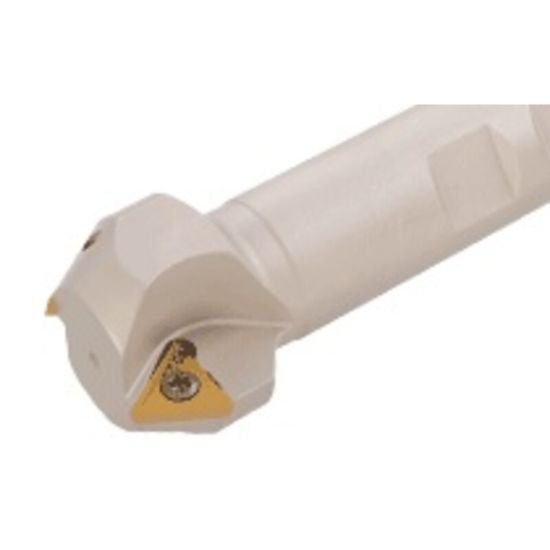

Picture of Iscar E60 D1.00-W .75 Milling Cutter 60.0° 1.000 Diameter Weldon 0.750 3.540 OAL 2 Flute

Iscar E60 D1.00-W .75 Milling Cutter 60.0° 1.000 Diameter Weldon 0.750 3.540 OAL 2 Flute

Part Number: ISC3181000 ISO: E60 D1.00-W .75 ANSI:E60 D1.00-W .75
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012736
Vendor: Sussex Tool and Supply
$274.56

Description

ISCAR 3181000 Triangle 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 7005890
Dimensions & Sizing
Overall Length 3.5400 89.92MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 11 "22"
Geometry & Angles
Cutting Edge Angle 60.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.3100
Cut Dia Max 1.5600 39.62MM
Materials & Finish
Tool Material Steel
