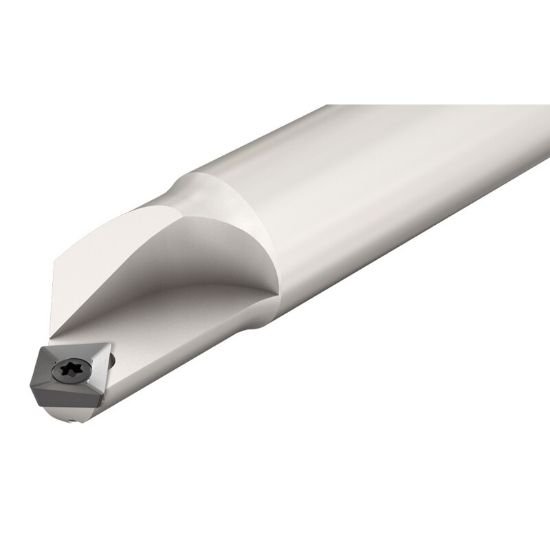

Picture of Iscar E45X D .25-W .50-06 Milling Cutter 45.0° 0.250 Diameter Weldon 0.500 2.750 OAL 1 Flute

Iscar E45X D .25-W .50-06 Milling Cutter 45.0° 0.250 Diameter Weldon 0.500 2.750 OAL 1 Flute

Part Number: ISC3100503 ISO: E45X D .25-W .50-06 ANSI:E45X D .25-W .50-06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011762
Vendor: Sussex Tool and Supply
$244.80

Description

ISCAR 3100503 Square 45.0°, Chamfer Mill End Mill Cylindrical 0.5000 Positive 0.2500 6.35MM - 1/4 - ECutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SO
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Tool Dia 0.2500 6.35MM - 1/4 - E
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Depth Of Cut Max 0.1500
Cut Dia Max 0.5700 14.48MM
Materials & Finish
Tool Material Steel
