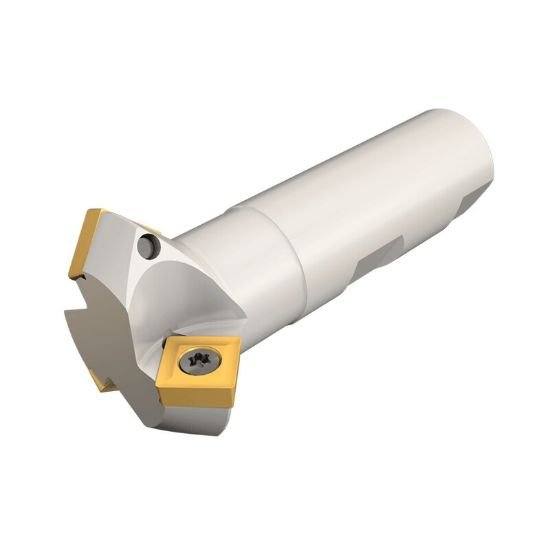

Picture of Iscar E45 D1.20-W1.00 Milling Cutter 45.0° 1.200 Diameter Weldon 1.000 3.750 OAL 3 Flute

Iscar E45 D1.20-W1.00 Milling Cutter 45.0° 1.200 Diameter Weldon 1.000 3.750 OAL 3 Flute

Part Number: ISC3110005 ISO: E45 D1.20-W1.00 ANSI:E45 D1.20-W1.00
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012662
Vendor: Sussex Tool and Supply
$335.04

Description

ISCAR 3110005 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 1.0000 Positive 1.2000 30.48MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SC
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000213
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.2000 30.48MM
Insert Size Ic 12 "43"
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 1.2000 30.48MM
Depth Of Cut Max 0.2700
Cut Dia Max 1.8150 46.10MM
Materials & Finish
Tool Material Steel
