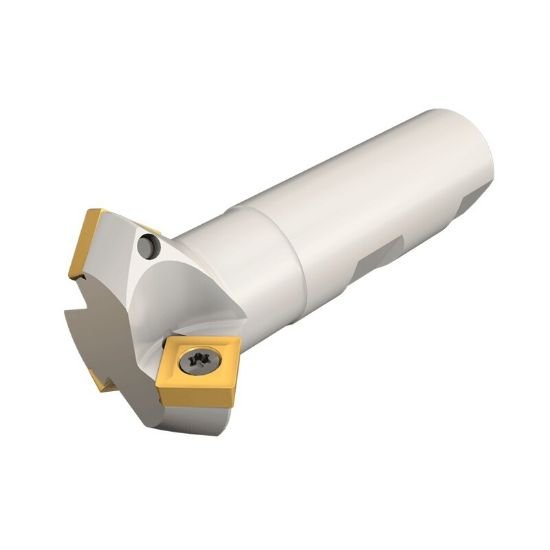

Picture of Iscar E45 D.62-W.75 Milling Cutter 45.0° 0.625 Diameter Weldon 0.750 3.540 OAL 2 Flute

Iscar E45 D.62-W.75 Milling Cutter 45.0° 0.625 Diameter Weldon 0.750 3.540 OAL 2 Flute

Part Number: ISC3110004 ISO: E45 D.62-W.75 ANSI:E45 D.62-W.75
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012661
Vendor: Sussex Tool and Supply
$275.52

Description

ISCAR 3110004 Square 45.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000213
Dimensions & Sizing
Overall Length 3.5400 89.92MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 16 "32"
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.3100
Cut Dia Max 1.4100 35.81MM
Materials & Finish
Tool Material Steel
